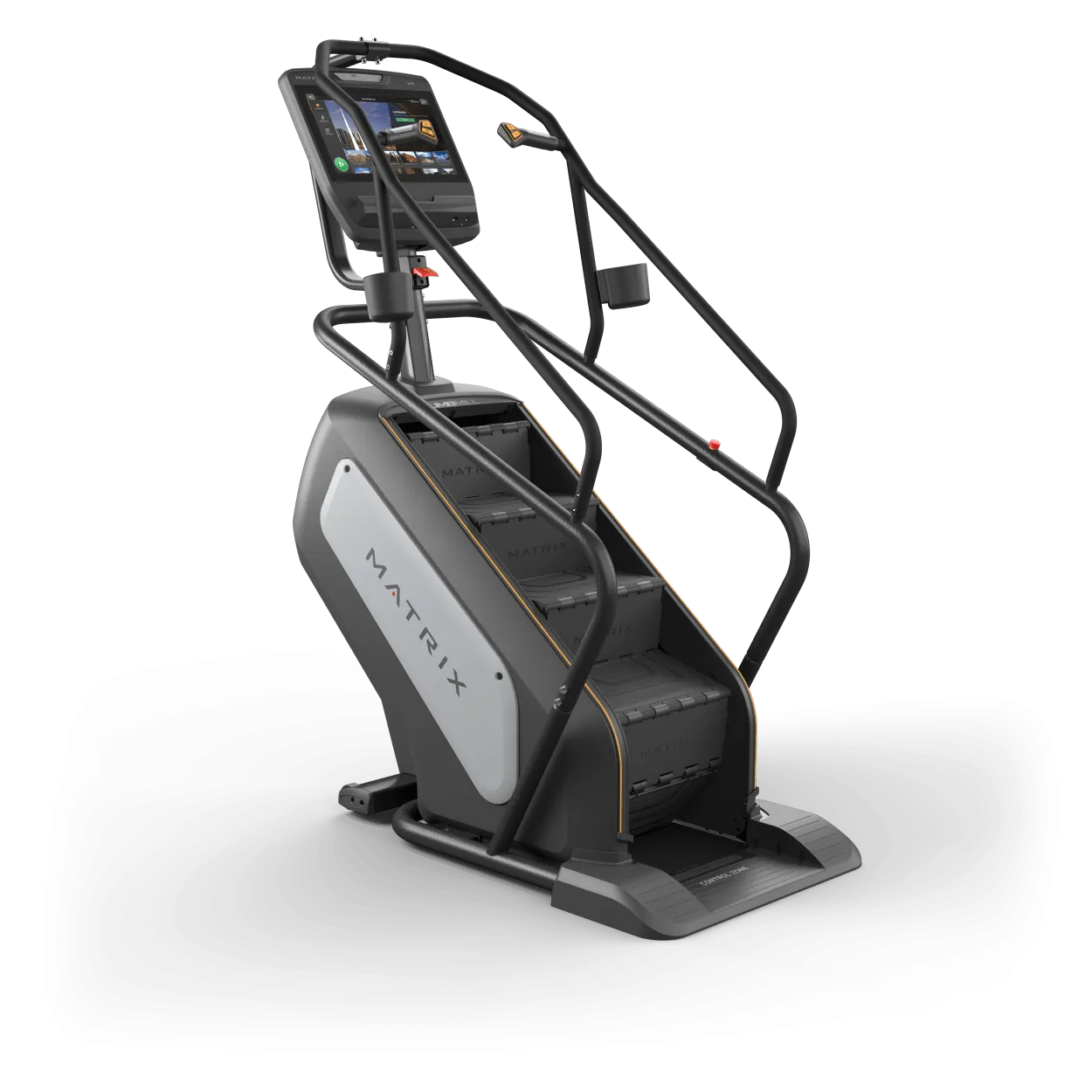

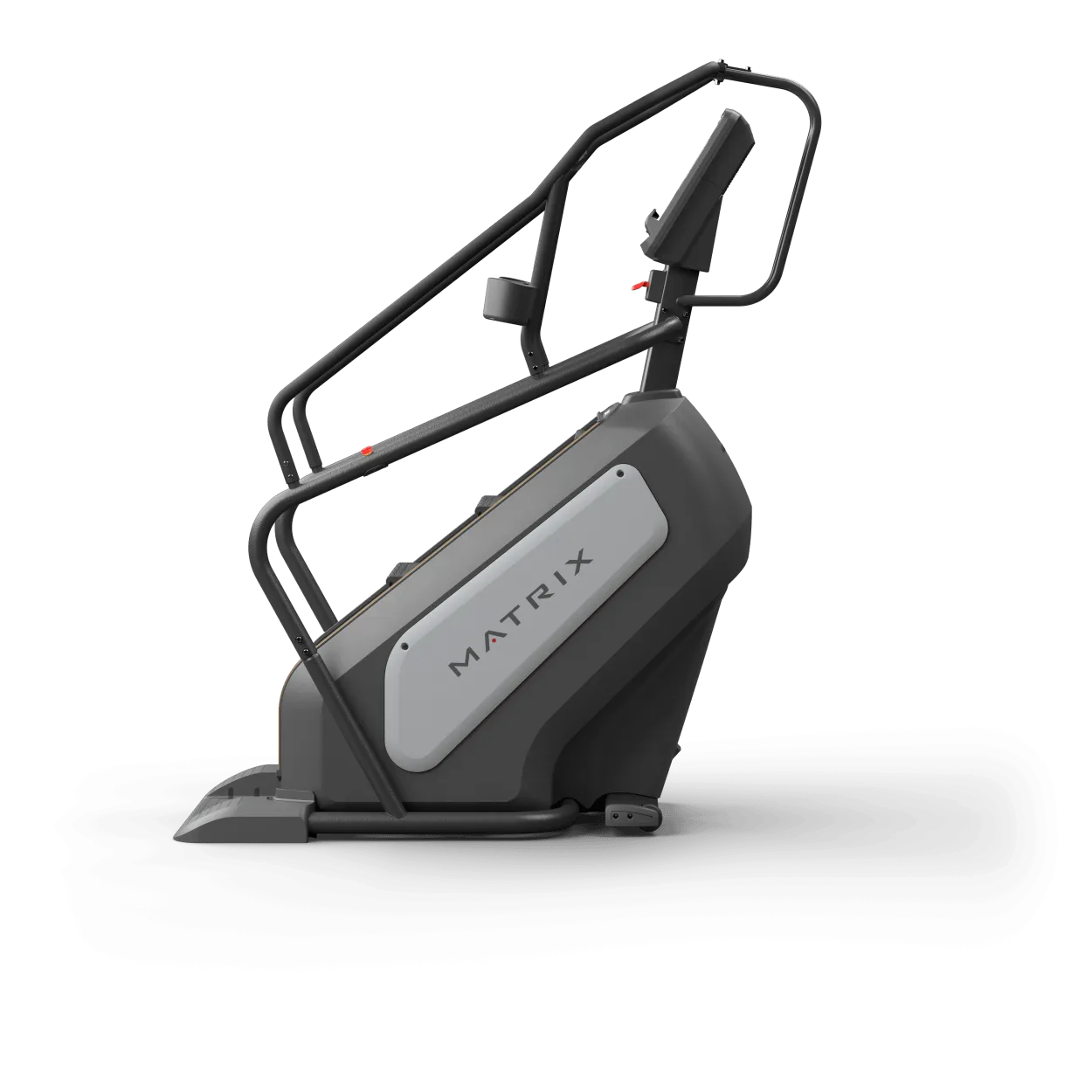

Introducing the Matrix Fitness Performance ClimbMill with Touch XL Console, a state-of-the-art fitness solution designed for high-performance, low-maintenance climbing workouts. It combines exceptional ergonomics, advanced security, and unparalleled durability for an optimal fitness experience.
Overview
Introducing the Matrix Fitness Performance ClimbMill with Touch XL Console, a state-of-the-art fitness solution designed for high-performance, low-maintenance climbing workouts. It combines exceptional ergonomics, advanced security, and unparalleled durability for an optimal fitness experience.
The Performance ClimbMill features an accessible step-up platform, making climbing workouts feasible for a wide range of fitness levels. Exceptional ergonomics are at the forefront of the design with Ergo Form perimeter handlebars that provide a secure and comfortable grip during your workout.
Safety is paramount in the Performance ClimbMill. With its advanced Control Drive and exclusive Control Zone sensor, it offers two reliable methods to instantly stop rotation, thus exceeding industry safety requirements.
The ClimbMill is designed to last, with a unique Sweat Management System that directs sweat away from the user and critical components, effectively extending the life of the machine. It boasts of a motorcycle-grade drive chain and an oil-free ECB modular system for low-maintenance, quiet operation.
Large, conveniently placed speed and incline controls are designed to improve durability and provide tactile feedback with each adjustment, enhancing user experience.
With a focus on enhanced serviceability, the ClimbMill offers an easy-access side panel, modular components, and an internal service light for streamlined maintenance. The rear-locking, leveling casters enable easy placement, making the Matrix Fitness Performance ClimbMill not just a fitness equipment, but a comprehensive, user-friendly fitness solution.

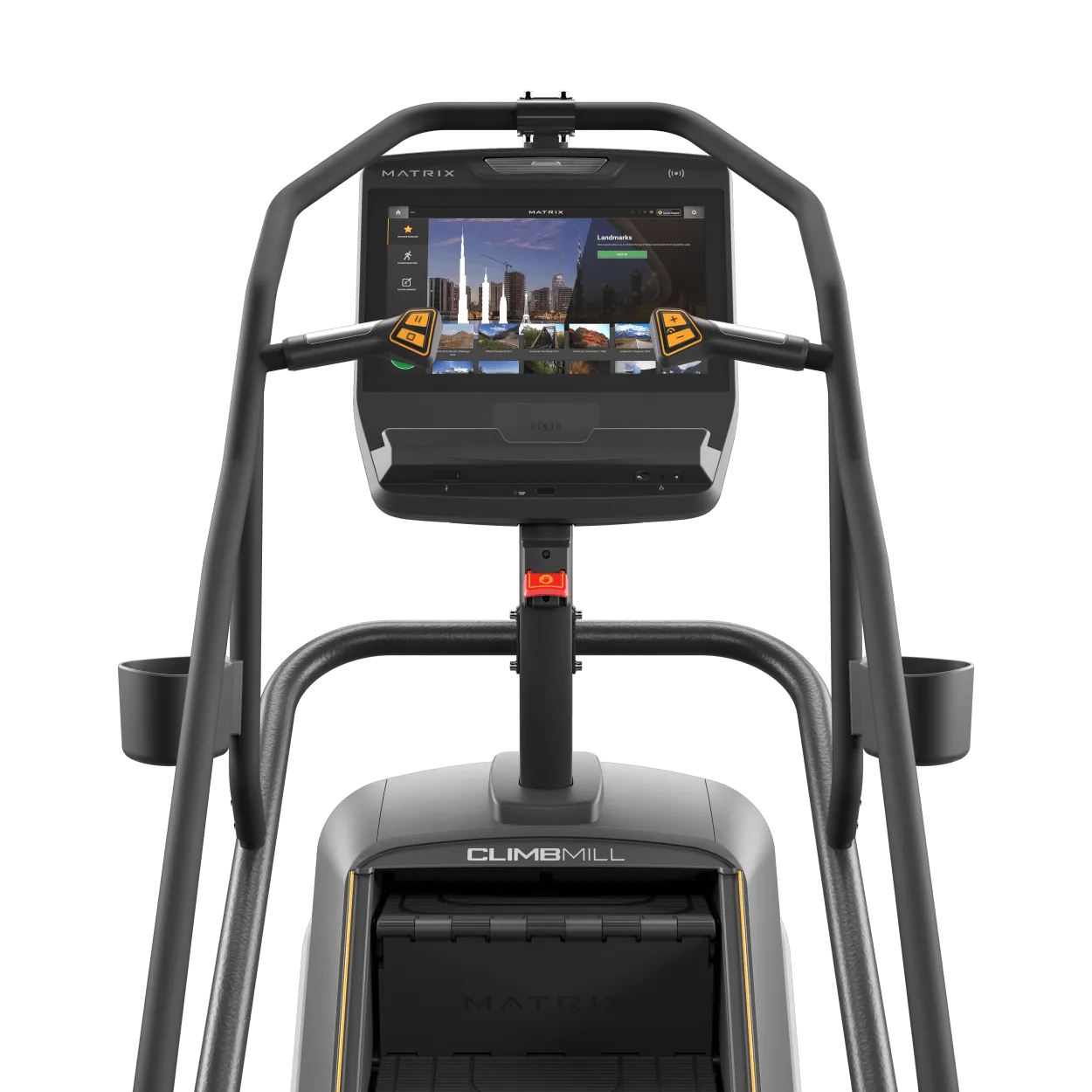

Stay connected and engaged with our WiFi-enabled Touch XL Console. With its app-based interface resembling familiar smartphone and tablet operating systems, members can effortlessly access the content that fuels their workouts. Featuring a 22" touchscreen LCD display and thirteen workout programs, it offers an immersive and versatile fitness experience.
Specifications
| Assembled Dimensions | 182.5 x 102.4 x 219.1 cm / 71.9" x 40.3" x 86.3" |
| Auto-Stop Function | Yes; frame mounted IR |
| Contact & Telemetric HR | Yes |
| Control Zone | Yes |
| Drive System | Clutched ECB with motorcycle-grade, sealed drive chain and belt |
| Ethernet Connectivity | Yes |
| Handlebar Design | Perimeter |
| Locking Staircase | Yes |
| Maximum User Weight | 182 kg / 400 lbs. |
| Minimum User Weight | 45 kg / 99 lbs. |
| Power Requirements | 100–240 V — 50/60Hz AC |
| Service Caster | Yes |
| Step Dimensions | 25.4 x 46 x 20.3 cm / 10” x 18” x 8” |
| Step-On Height | 25.4 cm / 10” |
| Top-Down Levelers | Yes |
| Resistance Range | 24–162 SPM |
| Assembled Weight | 188.8 kg / 416.2 lbs. |
| Shipping Weight | 209.8 kg / 462.5 lbs. |
| Resistance Levels | 25 |
Console Specifications
| ANT | No |
| Analog TV | NTSC, PAL, SECAM |
| Auto Wake-up | Yes |
| Bluetooth | Yes; smartphones, headphones, heart rate |
| CSAFE Ready | Yes |
| Connects to Apple Watch | Yes |
| Connects to Samsung Galaxy Watch | Yes |
| Digital TV | ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/C2/S/S2/T/T2 |
| Display | 56 cm / 22” class capacitive touchscreen LCD |
| Fan | Yes |
| IPTV | Content: MPEG2/H262, AVC/H264 Protocols: UDP, RTSP, HTTP, HTTPS |
| Languages | English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan |
| Made for iPhone, iPad, iPod | Yes |
| RFID Wireless Login | Yes |
| USB Port | Yes; device charging, device media, software updates |
| WiFi | Yes |
| Wireless Charging (Qi) | Yes |
| Workouts | Go, manual, Sprint 8†, Landmarks†, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts†, glute training†, goal training, fitness tests, custom |
| iFIT On-demand Workouts | Optional |
